MOTO AVS: POS Procedures |
This job aid describes the POS procedures
for a MOTO AVS transaction. AVS stands for Address Verification.
MOTO is one form of AVS (as set up in Options Configuration).
When using MOTO AVAS to process a mail, phone, or iNet order,
you'll create a test transaction to verify that the card is good,
take action if the test displays any warnings, and then invoice
the transaction.
More information about MOTO AVS is found
in the online help topics. Open the Integrated Credit Cards book, and then open
the Address Verification book to display a list of topics. |
|
1 |
If you received
a phone or mail order, and the customer wants to purchase
products for shipment, generate an order in POS (alternatively,
you can create a sale if the merchandise will be invoiced
immediately). If you are processing an iNet e-Store order,
recall the order in POS.
Press Total
(+ on the keypad).

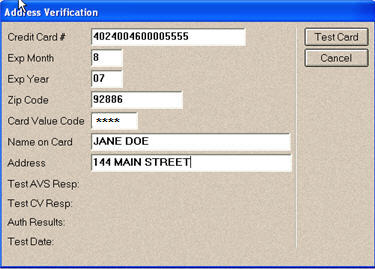

If this is an
iNet e-Store order, the Address Verification dialog displays
automatically. If this is a phone or mail order, select T-Totals
Menu, then select U-Address Verification Test.

Fill in the
dialog box:
iNet
e-Store order—
The dialog is already filled in with the information that
was provided by the customer when they placed the order on
your web site. If you want to enter a Card Value (CV) code,
contact the customer for that information, then type it in
the Card Value Code field.
Phone
or mail order—
Fill in the fields as follows:
Credit
Card #—
Credit card number. Do not enter any spaces.
Exp
Month—
Two-digit month expiration month.
Exp
Year—
Two-digit expiration year.
Zip
Code—
The exact zip code from the customer's statement. Numbers
only, do not enter any other characters.
Card
Value Code
American
Express—
3 or 4-digit code printed on the front of the card
VISA— 3-digit code
on the back of the card in the signature panel
Master
Card—
3-digit code on the back of the card in the signature
panel
Discover— 3-digit code
on the back of the card in the signature panel, next
to the card number
Note:
The Card Value Code will display as asterisks as you type it.
Name
on Card—
Customer's name exactly
as it appears on the card.
Address— The billing address
exactly as it appears on the customer's statement. Do
not enter any special characters (such as # . – ).
|
|
2 |
Review the information
you entered in the dialog. Press Tab to highlight the Test
Card button, then press Enter. The system sends to Integrated Credit Cards
an "authorization only" transaction request for
$1.00, as well as the AVS and CV information, which then submits
the transaction to the processor.
Once you've
received and read the processor's response to the test, press
OK to close the dialog. POS then submits a "remove authorization"
request to Integrated Credit Cards. The AVS and CV responses, as well as
the card number/expiration date (both encrypted), are saved
along with the order.
If the test
transaction is approved and the AVS and CV data matches, you
can either immediately invoice the transaction, or save it
so it can be recalled and billed at a later time.
If the test
transaction is approved but receives an AVS or CV response
warning, call the customer to obtain revised address information
(if you are unable to reach the customer, save the order so
you can try again later), enter the new information in the
Address Verification dialog, and press Test Card to resubmit
the test.
If the transaction
still comes back with AVS or CV warnings after resubmitting
the test, ask the manager how to proceed. You may be told
to ignore the warning and submit the card for full tender
at invoicing time, take another form of tender from the customer,
or void the transaction.
When appropriate,
invoice the order. If a test transaction was executed in step
5 above, the fields in the AVS dialog fill in automatically
based on the test transaction (all but the last four digits
of the card number are masked). The message "Transaction
in AVS Credit Card Tender Mode" displays on the totals
screen (at this point, you can change to some other form of
tender, if needed). The system compares the AVS and CV responses
from the test transaction to the response code actions set
up in Options Configuration (in option 8293 "Address
Verification Services Response Codes").
If the response
code indicates that invoicing is allowed, the clerk can proceed
with invoicing.
Important: The AVS and CV data are
not verified during invoicing. Only the "test card"
process verifies this information. The only reason the system
submits AVS and CV data to the processor during invoicing is to
ensure that you receive the best discount rates available on the
transaction.
If the response
code indicates that invoicing is not allowed (this can be
due to AVS response codes, or because successful test results
don't exist or have expired), press OK. At this point you
must either obtain a manager's override, or perform a test
transaction To display the AVS test window, press Total (+
on the keypad) to total the transaction, select T-Totals Menu,
then select U-Address Verification Test. prior to invoicing.

|
|
3 |
Tips:
If you are
creating an order for a customer with a stored credit card
number, card and address information is automatically passed
to POS. Transactions tendered using a stored credit card don't
require the AVS response code test, nor does the system check
the last test date; rather, it is assumed that if a customer
has a stored credit card on file, you have already verified
the card is good. Stored credit cards are nevertheless processed
as MOTO AVS transactions in order to ensure you get the best
discount rate possible from your processor.
If you manually
enter a credit card in the totals screen of POS, the system
treats the transaction as a retail AVS transaction. The system
only flags two types of transactions as MOTO AVS transactions:
1) iNet credit card transactions and 2) transactions where
the clerk attempts an AVS test . If you enter a new credit
card on the Totals screen for an iNet order or for a transaction
for which a MOTO AVS test has previously been run, the system
clears any previous MOTO AVS data / iNet flags and the transaction
processes as a retail AVS transaction.
|
|
